25

Micron Sample Rate

79

Pounds

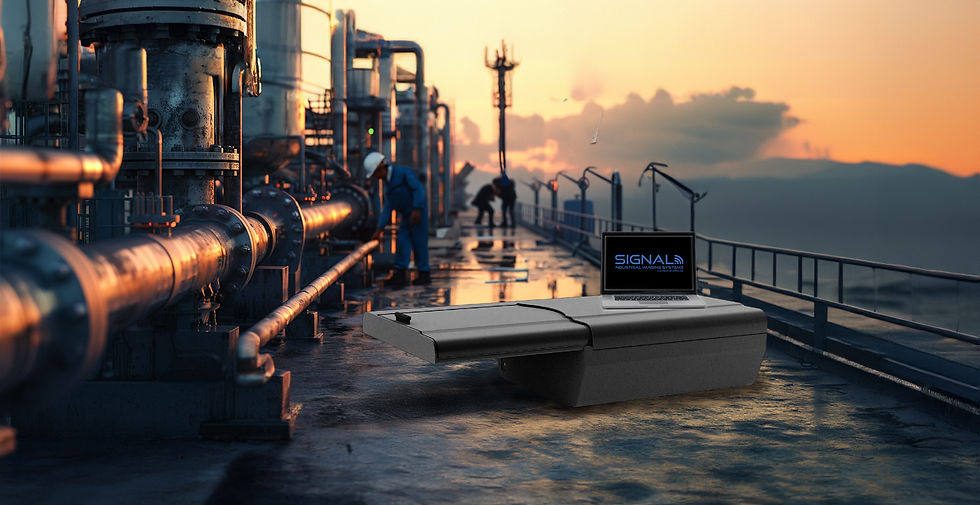

The SignalX Cobalt is a ruggedized multi-application imager that has been designed to perform in the most challenging industrial environments. The SignalX Cobalt's patented logarithmic image acquisition process allows practitioners the ability to achieve the highest image quality on the market. Surpassing all international codes and standards, the digital images produced by the SignalX Cobalt can be considered a true film replacement. Its high resolution imager is designed specifically to meet global industrial requirements. This imager utilizes a glass cassette loading mechanism that allows for both rigid and flexible IP plate configurations.

BENEFITS

Designed for:

  • Industrial Sites

  • Aerospace

  • Military Applications

  • Pipe Inspection

  • Arts & Leisure

Key Features:

  • CR Technology

  • True Flat Scan Path

  • Flexible, Rigid, Glass Cassettes

DIMENSIONS


SPECIFICATIONS

Grayscale Resolution

16 bits/ pixel source file, 65536 shades of gray

Pixel Pitch

25, 50, 100, 150, 200

Scanning Process

True Flat Scan Path
Single Action Drive Mechanism

Weight

79 lbs (35.9kg)

Dimensions

L45" x W23" x H10"

Throughput

60 Images Per Hours - Mixed Sized

Feed Mechanism

Flatbed/ Glass Cassette with Hard Cassette Option

Material Size

14" x 17" (35 x 43 cm), 10" x 12" (25 x 30 cm)

Power Source

100-240V AC/ 2.5 max
47-63Hz (Universal Power Supply)

24V option available

Interface

USB 2.0

Heat Generation

Standby 230W, maximum 1610W

Operating Conditions

Temperature: 0-40°C/ 32-105°F, Temperature Change: 0.5°C/ min, Humidity: 15%-95% RH, Magnetic Fields: maximum 1260 μT (in conformance with EN 61000-4-8: level 3), 10 A/m

Light/ Sensor

Diode/ PMT

Erase Method

Automatic, LED

Network

DICONDE Compliant

Operating System

Windows 7, 8, 10 - 64-bit
